Ceiling Board

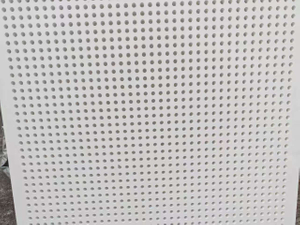

The quality pvc gypsum ceiling tile is for home suspension and dry wall partition. It is of moisture and fire resistant , easy instal, economic, environmental protection.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • CT600X600

A. Specifications: MM

Length x Width:

595X595,595X1195,600X600,603X603,

603X1210, 610X1220(2′X4′)

Thickness:

7.0,7.5, 8.0,8.5,9.0,9.5,12,12.5

Specifications Tolerance

Length:  +_ 1.0MM,   Width : +_ 1.0MM ,  Thickness : +_ 0.5MM

Packing

6/8/10 pieces per carton with shrink wrap   bag and importer trade mark printed on the carton strip.

Max loaded details

750/1400/1140 cartons, 3239.40-4032 squre   meters, 23.5 Tons ,

loaded in one 20′FCL

B. Technical Data

1.Weight / sqm: 7.0 MM: 5.5KGS. 7.5MM:   5.7KGS.8.0MM:5.9KGS.

8.5MM:6.2KGS.9.0MM:6.8KGS.9.5MM:7.1KGS.12MM:9.2KGS.12.5MM:9.5KGS

2.Fire resistant property

No- flammable B1 in   accordance with Chinese Standard GB8624-1997

3.Lengthways & Lateral Ruptures Load

7MM: >110N. 8.0MM : > 120N . 9.0MM:   >140 N.

Installation

Match with Top quality T-32/38 grids with   0.30-0.45MM thickness.

Properties: The top quality pvc laminated   gypsum ceiling tile with best aluminum foil backing is of thermal insulation,   fire resistant, moisture resistant, no deviation, elegant, economic, environmental   and easy installation, as the suspended ceiling tile and dry wall partition.

A.    Environmental, effective resisting dust,   conform to the standard of GB6566-2001《Building material radioactive nuclide   ration》

B.       Moisture   resistant, slight deviation, easy to clean, moisture rate ≤2%,conform to the national standard   JC/T997-2006 《Decorative gypsum board with paper-facing》

C.       Fire   resistant  A grade, conform to the Item   204 of BG50222-95 of 《Building material inter decoration design   fireproof criterion》

D.      Noise   reduction Coefficient: 0.1-0.3  E.   Thermal conductivity: 0.16W/MK  F.   Light reflectance :0.75

G.   Humidity resistant: 95% Humidity & standing water.
